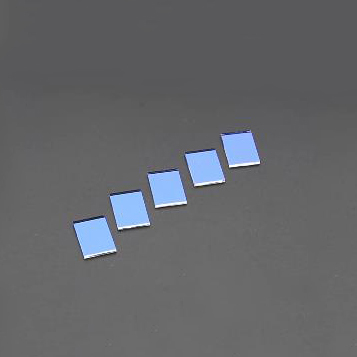

BP-1450nm Bandpass Filter

BP-1450nm Bandpass filter is a near-infrared band-pass filter, which is widely suitable for unmanned lidar, near-infrared detection, and other high-tech fields.
0.0 (0 Reviews)
$10.00 $1.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • Description
BP-1450nm Bandpass Filter
BP-1450nm Bandpass filter is a near-infrared band-pass filter, which is widely suitable for unmanned lidar, near-infrared detection, and other high-tech fields.

Specification for BP-1450nm Bandpass Filter
Center wavelength: 1450nm+/-2nm
Incident angle: 0°
Half peak bandwidth: 25nm
Peak transmittance: >90% (according to customer demand)
Product size: 3mm-80mm (customizable)
Cutoff wavelength: 200nm-2000nm (according to customer requirements)
Cut off depth: >0D3-0D6 UV-NIR
Product material: Optical grade glass (k9.bk7.b270.d263tjgs1. Color glass, float glass, etc.)
Surface finish: National standard level III, MIL-STD Standard 60-40

The bandpass filter is a filter adjacent to the cut-off band on both sides of the transmission band of the spectral characteristic curve. According to the spectral characteristics, band-pass filters are roughly divided into broadband filters and narrowband filters. The two filters are usually combined. The principle of light wave interference is applied to prepare band-pass filters, and band-pass filters have been widely used in various fields.
