CaF2 Optical Window Calcium Fluoride Optical Window

CaF2 Optical Window Calcium Fluoride Optical Window is between 250 nm and 7 nm μ M has excellent transmittance, so it is widely used in products such as spectroprism, window sheet and lens. Because of its low absorbance and high damage threshold

0.0 (0 Reviews)

~~$10.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Calcium Fluoride Optical Window

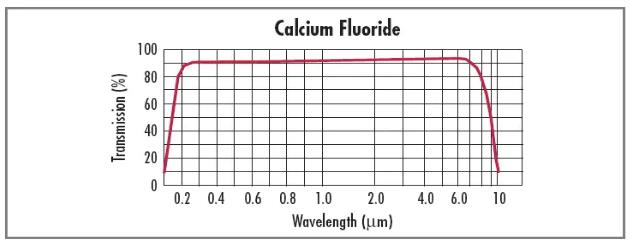

The calcium fluoride optical window is between 250 nm and 7 nm μ M has excellent transmittance, so it is widely used in products such as spectroprism, window plates, and lenses. Because of its low absorbance and high damage threshold, it has become an ideal choice for excimer laser optics. The low refractive index of calcium fluoride also enables it to be used without anti-reflection film. The Knoop hardness of calcium fluoride is 158.3. WDQ OPTICS Calcium fluoride (CaF2) window sheet is made of vacuum UV grade calcium fluoride and is often used in low-temperature cold and thermal imaging systems.

Product features:
-The calcium fluoride optical window is between 250 nm and 7 nm μ M, so it is widely used in window films, lenses and other products.
-Because of its low absorbance and high damage threshold, it has become an ideal choice for excimer laser optics.
-The low refractive index of calcium fluoride also enables it to be used without antireflection film. The Knoop hardness of calcium fluoride is 158.3.
-Calcium fluoride (CaF2) window sheet is made of vacuum UV grade calcium fluoride and is often used in low-temperature cold and thermal imaging systems.

Processing range:

WDQ OPTICS can process and order all kinds of calcium fluoride windows, calcium fluoride plane mirrors and calcium fluoride plane windows for you

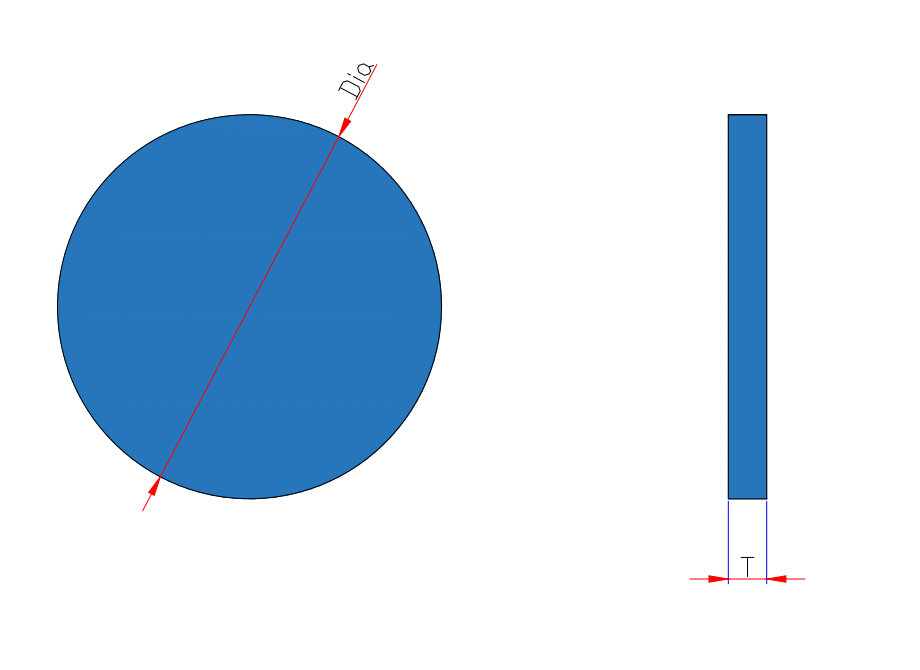

Shape	Size specification	Shape accuracy	Surface Flatness	Eccentricity accuracy	Coated band
Window	10～100mm	+/-0.02mm	PV 0.15	1′	UV, visible, mid-infrared
Window	101～190mm	+/-0.05mm	PV 0.5	1′	Ultraviolet
