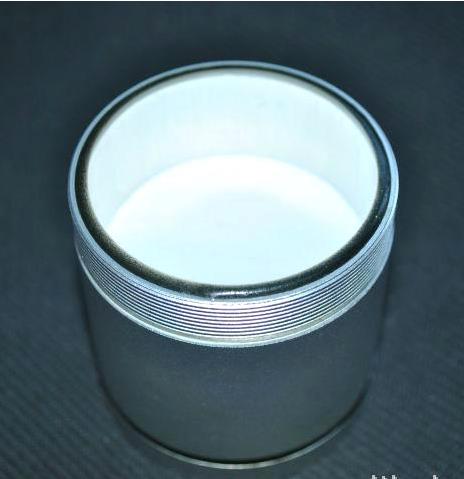

NaI(TI) Scintillator NaI(TI) Scintillation Crystal

NaI(TI) Scintillation Crystal is one of the most widely used scintillation crystals, which is mainly used in nuclear medicine, environmental detection, nuclear physics, aerospace exploration, oil exploration, and other fields

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

NaI(TI) Scintillation Crystal
Sodium iodide NaI (TI) crystal is one of the most widely used scintillation crystals, which is mainly used in nuclear medicine, environmental detection, nuclear physics, aerospace exploration, oil exploration, and other fields. The crystal has high luminous efficiency, no obvious self-absorption in the luminous band, and has good resolution energy for X-ray and gamma-ray. It is the most widely used of all scintillation crystal materials. It is well-matched with a photomultiplier tube and has an excellent matching of back-end electronic circuits. It can provide single crystal and hot forged crystals of various sizes. If there are special sizes, they can be customized.
The performance of sodium iodide crystal produced by our company has reached the international advanced level, with a conventional diameter of 2 "x2" and 3 "X3". Under the radioactive source cesium 137, the energy resolution can reach less than 7%; The photomultiplier tube can be assembled as required, and the front partial pressure scintillation detector can be finished.

Feature
1. Easy to process various sizes and shapes, cylinder, square, side window, rotating hole, 1L, 2L, 4L crystal
2. High detection efficiency
3. The product has excellent cost performance, which is conducive to cost control

Performance Index

Density （g/cm3）	3.67
Melting Point （℃）	924
Coefficient Of Thermal Expansion (k-1)	47.4 x 10-6
Cleavage Surface	-100
Hardness (mho)	2
Moisture absorption	yes
Maximum emission wavelength （nm）	415
Refractive index	1.85
Decay time （ns）	250
Temperature coefficient of light yield	0.3% K-¹
Light yield (photons / keV)	38
