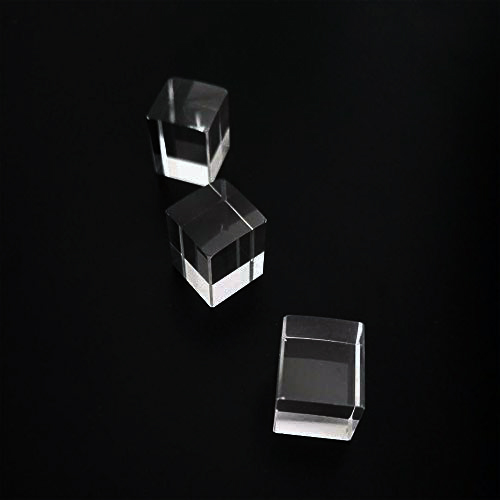

Sapphire Optics Prism & Custom Optical Sapphire Prism

Sapphire Prism is a single crystal aluminum oxide (Al2O3). It is one of the hardest materials. Sapphire has good transmission characteristics over the visible, and near IR spectrum. It exhibits high mechanical strength, chemical resistance

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Sapphire Prism
Sapphire is a single crystal aluminum oxide (Al2O3). It is one of the hardest materials. Sapphire has good transmission characteristics over the visible, and near IR spectrum. It exhibits high mechanical strength, chemical resistance, thermal conductivity, and thermal stability. It is often used as window materials in a specific field such as space technology where scratch or high-temperature resistance is required.

We offer many kinds of high-precision prisms, such as right-angle prisms, corner cubes, pentaprism, dove prisms, roof prisms, rhomboid prisms, or other irregular shapes.

Typical Applications:
- Optical surfaces
- Imaging optics
- Corrosion-resistant surface

Specification

Type	Item	H	W	L	Angle tolerance	SR
		(mm)	(mm)	(mm)
Prism	Dimension	5~200	5~200	5~200	2″~5′	Customization
	Tolerance	0.05	±0.05	±0.05

- Surface Quality: 80/50, 60/40, 40/20.
- Clear Aperture: 90% of circle or ellipse to actual for entrance and the exit surface.
- Coating: We provide a different single layer or multiplayer anti-reflecting ( AR ) coating against different requirements, customize available.

Sapphire optics and sapphire custom shapes, including sapphire ball, sapphire lens, sapphire prism, and mechanical parts, occupy a unique position in the field of optics. Sapphire lens, spherical lens, and prism show excellent performance in many applications requiring extreme mechanical, optical, thermal, and chemical stability. Sapphire optical devices also have excellent transmission bandwidth, which can be well transmitted to ultraviolet and infrared bands; A wider range than the most common lens materials.

WDQ OPTICS provides a variety of high-precision prisms, right angle prisms, pyramid prisms, pentagonal prisms, pigeon prisms, roof prisms, diamond prisms or other irregular shapes, made of optical glass BK7, fused quartz, sapphire, etc. There are many types of prisms, each with a specific geometry to achieve the reflection required to perform a specific imaging task. The reflecting prism can reverse, rotate, deviate or move the beam. The dispersion prism produces spectral separation for spectral tuning of the laser output.
