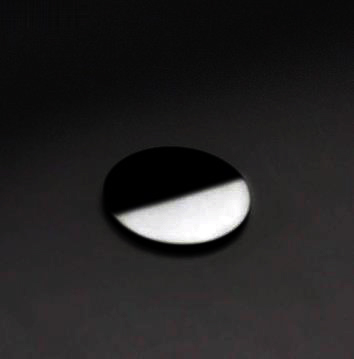

Single Crystal Silicon Window Si Optical Window

Single Crystal Silicon Window Si Optical Window is a chemically inert material with good thermal conductivity, low density and high hardness, ranging from 1 to 7 μ M has good light transmittance. At the same time, it is in the far infrared band

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Single Crystal Silicon Window Si Optical Window
Single-crystal silicon (SI) is a chemically inert material with good thermal conductivity, low density and high hardness, ranging from 1 to 7 μ M has good light transmittance. At the same time, it is in the far-infrared band 300-300 μ M also has good light transmission performance, which is not characteristic of other optical infrared materials. It is usually used for 3-5 μ M medium wave infrared optical window and optical filter substrate, due to its good thermal conductivity and low density, it is also a common material for making laser mirrors. The density of monocrystalline silicon is 2.316g/cm ³， Knoop hardness is 1150, which is harder and less fragile than germanium

Technical Requirement

Technical Requirement	Commercial Grade	Precision Grade	High Precision Level
Size Range	1-600mm	2-600mm	2-600mm
Diameter Tolerance	土0.1mm	土0.025mm	土0.01mm
Thickness Tolerance	土0.1mm	土0.025mm	土0.01mm
Parallel Deviation	±3´	±1´	±5´´
Surface Quality	60-40	40-20	10月20日
Surface Accuracy	1.0λ	λ/10	λ/20
Coating	3-5μm AR, <5% per Surface
Inverted Edge	0.1-0.5mm*45°
Material	Silicon or other crystalline materials

Standard Size

Diameter (mm)	Thickness (mm)	Coating Requirements
10	1	3-5μm T >97%
12.5	1
20	2
25	3
30	3
38.1	3
40	4
50	3
50.8	3
63.5	5
75	3
75	5
76.2	6
80	8
90	10
100	10
150	15
180	18
200	20
300	35

Properties

Density (g Cm-3)	2.33
Melting Point (℃)	1420
Dielectric Constant	13 @ 10GHZ
Coefficient Of Thermal Expansion (1 / ℃)	4.15*10-6
Bulk Modulus Of Elasticity (gpa)	102
Shear Modulus (Gpa)	79.9
Thermal Conductivity (j/k .m. S)	163.3 @ 273K
Heat Capacity (j/g .k)	0.733
Knoop Hardness (kg / Mm2)	1150
Young's Modulus (gpa)	131
Poisson's Ratio	0.266
Elastic Coefficient	C11=167 C11=65 C11=80
Transmission Wavelength Range	1000nm—10000nm 30000nm—300000nm
Thermo Optic Coefficient, Dn / Dt (1 / K)	1.6*10-4
Absorption Coefficient (1 / Cm)	1.6*10-3 @3000.nm
