Round Sapphire Windows

Round Sapphire Windows for Scientific, Industrial and Military applications

0.0 (0 Reviews)

~~$10.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

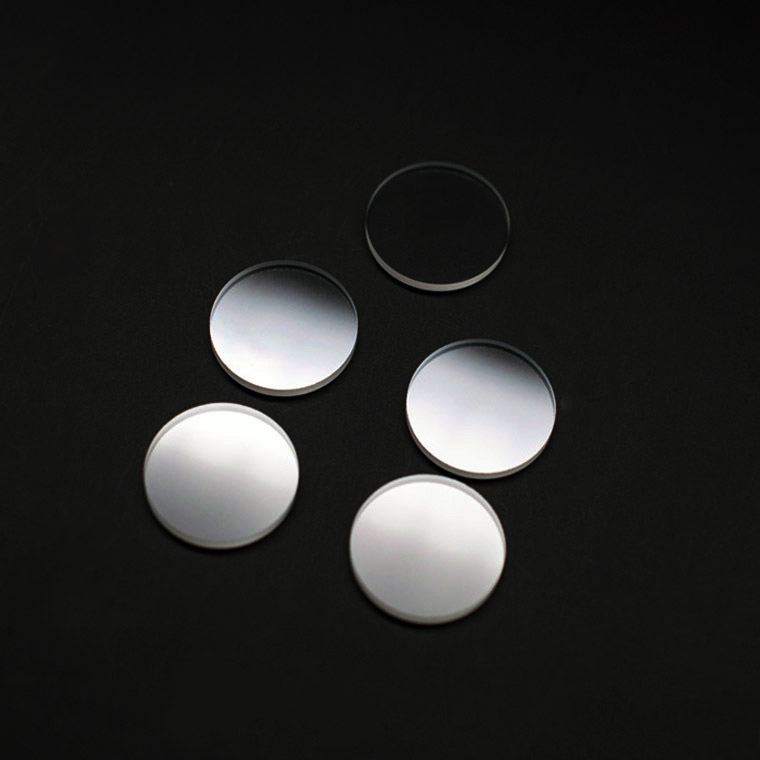

Round Sapphire Windows
We can offer our expertise in developing precision customized sapphire windows manufactured to your project’s specifications, including orientations, surface finishes, and materials.
Typical Applications: Gas & Air Analyzers/Monitors, UV & IR Detectors, Endoscopes, High-Intensity Lamps, Bar Code Readers, Photodiodes, View Ports
Our super sapphire windows polishing processes enable us to polish sapphire windows with high precision optical flatness, low scatter surface finish, and without surface and subsurface damage. Our achievable specifications of sapphire round windows are diameter up to 200mm, surface accuracy up to 0.1 lambdas (lambda 633 nm), and surface quality up to 10/5 MIL
Specification for Round Sapphire Windows

Dimensions	0.2-300mm
Thickness	0.1-30mm or custom
Diameter tolerance	+/- 0.05 mm
Thickness tolerance	+/- 0.05 mm
Surface quality	80-50 Scratch-Dig
Surface accuracy	<15λ per inch
Clear aperture	90%
Edges	Fine ground and beveled
Coating	As customer request
Feature	1-Thinner and Stronger than Standard Glass Windows 2-Transmits Wavelengths Ranging From UV to Mid-Infrared 3-Features Extreme Surface Hardness and Chemical Resistant

About Sapphire

Material	Sapphire(Al2O3)
Density(20°C) Kg/m3	3.98×103
Crystal Structure	hexagonal
Crystal lattice constant	a=4.785Å c=12.991 Å
Mohs hardness	9h
Melting Point	2045°C
Boiling Point	3000°C
Coefficient of Thermal Expansion	α=5.8×10 -6 /K
Specific heat	0.418W.s/g/k
Thermal conduction	25.12W/m/k(@100°C)
Refractive Index (nd)	no=1.768
Refractive Index (nd)	ne=1.76
dn/dt	13×10-6/K(@633nm)
Tranmission	T≈80%(0.3~5um)
Permittivity	11.5(//c), 9.3(⊥c)

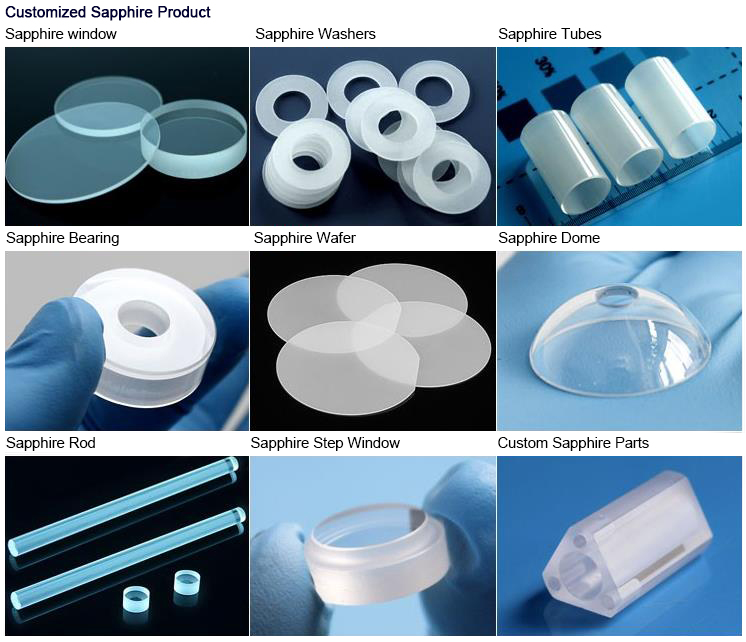

WDQ OPTICS supply you professional customized service
a: Dimension size : 0.2-300mm or customization , thickness >0.1mm
b: Gemstone Type: Synthetic (lab created)
c: AR coating or as your request
d: Product shape: round, rectangle, or custom shape
e: Chemical Composition: Al2O3

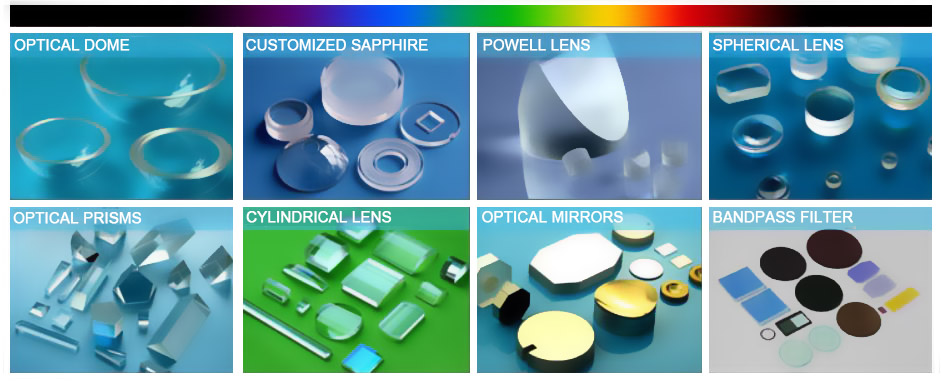

More Round optical glass windows(K9 CaF2,MgF2,Ge,ZnSe,Mono Si,ZnS,quartz)

Optical windows refer to a piece of transparent optical material that allows light into an optical instrument. They are pieces of optical glasses with the ground and polished faces that are relatively parallel. Optical windows are applied for protecting fragile optical components inside equipment, they are adopted to isolate two physical environments while allowing light to pass.

Material	Properties	Applications
BK7	Transmission Range: 330-2100nm	Most popular and low cost Visible and near IR spectrum applications

	Refractive Index: 1.5164@588nm

Fused Silica	Transmission Range: 185-2500nm	UV to IR spectrum, the best choice for thermal resistance application.

	Refractive Index: 1.4858@308nm

	Low Thermal Expansion Coefficient: 0.54 x 10-6K
Sapphire	Transmission Range: 180-4500nm	Best choice for scratch resistance applications Thinner optics

	Refractive Index: 1.755@1000nm	Wide Transmission Range

	Strong Hardness
Calcium Fluoride	Transmission Range: 170-7800nm	IR laser applications
	Refractive Index: 1.399@5000nm
	Little Hygroscopic Susceptibility
	High Thermal Expansion Coefficient: 18.85 x 10-6K
MgF2	Transmission Range: 120-7000nm	UV laser applications
	Refractive Index: 1.376@700nm

RFQ
Q: What's the way of shipping and cost?
(1) We accept DHL, FedEx, TNT, UPS, EMS, SF and etc.
(2) If you have your own express number, it's great.
(3) Freight=USD35.0(the first weight) + USD12.0/kg
Q: How to pay?
(1) T/T, PayPal, West Union, MoneyGram and Assurance payment and etc..
(2) Bank Fee: West Union-USD30.00(≤USD3000.00),
T/T-USD20.00+, PayPal-5%. Please consult the local bank.
Q: What's the delivery time?
(1) For inventory: the delivery time is 5 workdays.
(2) For customized products: the delivery time is 7 to 25 workdays. According to the quantity.
Q: Can I customize the products based on my need?
Yes, we can customize the material, specifications, and optical coating for your optical components based on your needs.
