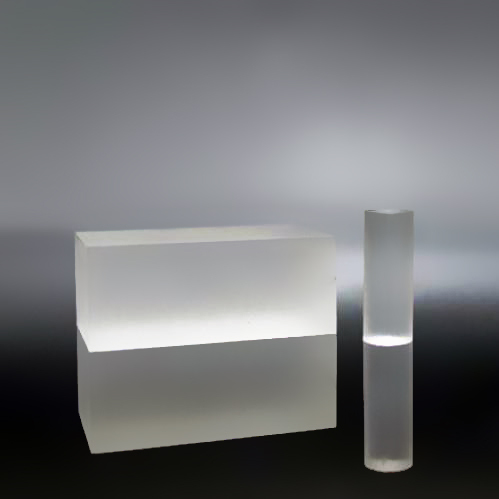

Nonlinear Crystal BBO Crystals

Nonlinear Crystal Beta-Barium Borate (β-BaB2O4) or BBO crystal has an excellent combination of optical properties: high damage threshold, large nonlinear coefficients, broad transmission range, wide phase matching, low thermal-optical coefficients

0.0 (0 Reviews)

~~$1,000.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

BBO Crystals

Beta-Barium Borate (β-BaB2O4) or BBO crystal has an excellent combination of optical properties: high damage threshold, large nonlinear coefficients, broad transmission range, wide phase matching, low thermal-optical coefficients and availability of large size high quality single crystals. BBO crystals is versatile nonlinear crystals, suitable for harmonic generation operations, optical parametric oscillators (OPO) and optical parametric amplifiers (OPA), and electric optical applications. BBO is one of the few practical crystals for use below 500nm in SHG and SFM.

WDQ OPTICS supply off-the-shelf and customized BBO crystals for frequency-conversion (SHG,THG, 4HG and 5HG) of Visible and Near IR laser light (such a as Na: YAG lasers, Ti:Sapphire lasers), OPO/OPG/OPA pumped by ultrafast pulses of wavelengths in the Near IR to UV, and sum-frequency mixing (SFM) into the Visible to the deep UV (dye lasers). Hangzhou Shalom EO also provides BBO crystals used in the electric optical pockets cells and spontaneous down conversions (SPDC) applications

Specifications:

Dimension Tolerance	(W±0.1mm)x(H±0.1mm)	Clear Aperture	central 90% or the diameter
Scattering of Crystals	No visible scattering paths or centers when inspected by a 50mW green Laser	Flatness	less than λ/8 @ 633nm
Transmitting Wavefront Distortion	less than λ/8 @ 633nm	Chamfer	≤0.2mmx45°
Chip	≤0.1mm	Surface Quality	better than 10/5 S/D (MIL-PRF-13830B)
Parallelism	≤20 arc seconds	Perpendicularity	≤5 arc minutes
Angle Tolerance	≤0.25°	Quality Warranty Period	one year under proper use

Code	Size	Thickness	θ	φ	Coating	Application	Unit Price	Delivery
20201-001	6x6mm	0.01mm	23.4°	90°	P/P	SHG@1030nm Type1	$380	3 weeks
20201-002	6x6mm	0.02mm	23.4°	90°	P/P	SHG@1030nm Type1	$380	3 weeks
20201-003	6x6mm	0.05mm	23.4°	90°	P/P	SHG@1030nm Type1	$380	2 weeks
20201-004	6x6mm	0.1mm	23.4°	90°	P/P	SHG@1030nm Type1	$380	2 weeks
20201-005	6x6mm	0.5mm	23.4°	90°	P/P	SHG@1030nm Type1	$245	2 weeks
20201-006	6x6mm	1.0mm	23.4°	90°	P/P	SHG@1030nm Type1	$245	2 weeks
20201-007	6x6mm	1.5mm	23.4°	90°	P/P	SHG@1030nm Type1	$245	2 weeks
20201-008	6x6mm	2.0mm	23.4°	90°	P/P	SHG@1030nm Type1	$245	2 weeks
20201-009	6x6mm	0.01mm	29.2°	90°	P/P	SHG@800nm Type1	$380	3 weeks
20201-010	6x6mm	0.02mm	29.2°	90°	P/P	SHG@800nm Type1	$380	3 weeks
20201-011	6x6mm	0.05mm	29.2°	90°	P/P	SHG@800nm Type1	$380	2 weeks
20201-012	6x6mm	0.1mm	29.2°	90°	P/P	SHG@800nm Type1	$305	2 weeks
20201-013	6x6mm	0.2mm	29.2°	90°	P/P	SHG@800nm Type1	$245	2 weeks
20201-014	6x6mm	0.5mm	29.2°	90°	P/P	SHG@800nm Type1	$245	2 weeks
20201-015	6x6mm	1.0mm	29.2°	90°	P/P	SHG@800nm Type1	$245	2 weeks
20201-016	6x6mm	2.0mm	29.2°	90°	P/P	SHG@800nm Type1	$245	2 weeks
20201-017	10x10mm	0.02mm	29.2°	90°	P/P	SHG@800nm Type1	$605	3 weeks
20201-018	10x10mm	0.05mm	29.2°	90°	P/P	SHG@800nm Type1	$605	2 weeks
20201-019	10x10mm	0.1mm	29.2°	90°	P/P	SHG@800nm Type1	$530	2 weeks
20201-020	10x10mm	0.2mm	29.2°	90°	P/P	SHG@800nm Type1	$455	2 weeks
20201-021	10x10mm	0.5mm	29.2°	90°	P/P	SHG@800nm Type1	$455	2 weeks
20201-022	10x10mm	1.0mm	29.2°	90°	P/P	SHG@800nm Type1	$455	2 weeks
20201-023	10x10mm	1.5mm	29.2°	90°	P/P	SHG@800nm Type1	$455	2 weeks
20201-024	10x10mm	2.0mm	29.2°	90°	P/P	SHG@800nm Type1	$455	2 weeks
20201-025	6x6mm	0.01mm	44.3°	90°	P/P	THG@800nm Type1	$380	3 weeks
20201-026	6x6mm	0.02mm	44.3°	90°	P/P	THG@800nm Type1	$380	3 weeks
20201-027	6x6mm	0.05mm	44.3°	90°	P/P	THG@800nm Type1	$380	2 weeks
20201-028	6x6mm	0.1mm	44.3°	90°	P/P	THG@800nm Type1	$305	2 weeks
20201-029	6x6mm	0.2mm	44.3°	90°	P/P	THG@800nm Type1	$245	2 weeks
20201-030	6x6mm	0.5mm	44.3°	90°	P/P	THG@800nm Type1	$245	2 weeks
20201-031	6x6mm	1.0mm	44.3°	90°	P/P	THG@800nm Type1	$245	2 weeks
20201-032	6x6mm	2.0mm	44.3°	90°	P/P	THG@800nm Type1	$245	2 weeks
20201-033	10x10mm	0.02mm	44.3°	90°	P/P	THG@800nm Type1	$605	3 weeks
20201-034	10x10mm	0.05mm	44.3°	90°	P/P	THG@800nm Type1	$605	2 weeks
20201-035	10x10mm	0.1mm	44.3°	90°	P/P	THG@800nm Type1	$530	2 weeks
20201-036	10x10mm	0.2mm	44.3°	90°	P/P	THG@800nm Type1	$455	2 weeks
20201-037	10x10mm	0.5mm	44.3°	90°	P/P	THG@800nm Type1	$455	2 weeks
20201-038	10x10mm	1.0mm	44.3°	90°	P/P	THG@800nm Type1	$455	2 weeks
20201-039	10x10mm	2.0mm	44.3°	90°	P/P	THG@800nm Type1	$575	2 weeks
20201-040	10x10mm	2.5mm	44.3°	90°	P/P	THG@800nm Type1	$575	2 weeks
20201-041	10x10mm	5.0mm	44.3°	90°	P/P	THG@800nm Type1	$760	2 weeks
20201-042	7x7mm	6.0mm	47.6°	90°	P/P	4HG@1064nm Type1	$560	2 weeks
20201-043	6x6mm	2.0mm	21.2°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-044	5x5mm	0.5mm	23.4°	90°	P/P	Type1 Phase Matching	$245.00	2 weeks
20201-045	8x8mm	2.5mm	23.4°	90°	P/P	Type1 Phase Matching	$395	2 weeks
20201-046	10x10mm	0.1mm	28.5°	90°	P/P	Type1 Phase Matching	$530	2 weeks
20201-047	8x8mm	0.5mm	29°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-048	8x8mm	2.5mm	29°	90°	P/P	Type1 Phase Matching	$395	2 weeks
20201-049	6x6mm	1.0mm	29.2°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-050	8x8mm	1.0mm	29.2°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-051	6x6mm	2.0mm	30°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-052	6x6mm	0.2mm	30.5°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-053	6x6mm	1.0mm	30.5°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-054	6x6mm	2.0mm	30.5°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-055	3x3mm	4.0mm	31.3°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-056	3x3mm	6.0mm	31.3°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-057	6x6mm	2.0mm	31.5°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-058	6x6mm	2.5mm	31.5°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-059	8x8mm	0.6mm	32°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-060	8x8mm	1.0mm	32°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-061	6x6mm	0.6mm	32.5°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-062	6x6mm	1.0mm	32.5°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-063	8x8mm	0.8mm	32.5°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-064	5x5mm	2.5mm	32.6°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-065	5x5mm	4.0mm	32.6°	90°	P/P	Type1 Phase Matching	$275	2 weeks
20201-066	8x8mm	1.0mm	35°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-067	8x8mm	2.0mm	35°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-068	20x20mm	0.15mm	35°	90°	P/P	Type1 Phase Matching	$1,970	2 weeks
20201-069	20x20mm	0.2mm	35°	90°	P/P	Type1 Phase Matching	$1,970	2 weeks
20201-070	10x10mm	3.0mm	40.3°	90°	P/P	Type1 Phase Matching	$575	2 weeks
20201-071	8x8mm	0.3mm	42.8°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-072	6x6mm	0.2mm	43°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-073	8x8mm	0.1mm	43°	90°	P/P	Type1 Phase Matching	$395.00	2 weeks
20201-074	8x8mm	0.5mm	43°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-075	5x5mm	1.0mm	44°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-076	8x8mm	0.15mm	44.3°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-077	8x8mm	0.5mm	44.3°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-078	10x10mm	0.4mm	45.9°	90°	P/P	Type1 Phase Matching	$455	2 weeks
20201-079	3x3mm	4.0mm	47.7°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-080	8x8mm	1.0mm	47.7°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-081	8x8mm	3.0mm	47.7°	90°	P/P	Type1 Phase Matching	$440	2 weeks
20201-082	10x10mm	1.0mm	47.7°	90°	P/P	Type1 Phase Matching	$455	2 weeks
20201-083	10x10mm	2.5mm	47.7°	90°	P/P	Type1 Phase Matching	$575	2 weeks
20201-084	8x8mm	0.1mm	48°	90°	P/P	Type1 Phase Matching	$395	2 weeks
20201-085	8x8mm	0.2mm	48°	90°	P/P	Type1 Phase Matching	$350	2 weeks
20201-086	4x4mm	2.8mm	51.2°	90°	P/P	Type1 Phase Matching	$245	2 weeks
20201-087	5x5mm	2.5mm	28°	30°	P/P	Type2 Phase Matching	$245	2 weeks
20201-088	8x8mm	2.5mm	28°	30°	P/P	Type2 Phase Matching	$395	2 weeks
20201-089	5x5mm	2.0mm	28.7°	30°	P/P	Type2 Phase Matching	$245	2 weeks
20201-090	8x8mm	0.6mm	30°	30°	P/P	Type2 Phase Matching	$350	2 weeks
20201-091	10x10mm	1.0mm	32°	30°	P/P	Type2 Phase Matching	$575	2 weeks
20201-092	10x10mm	5.0mm	32°	30°	P/P	Type2 Phase Matching	$760	2 weeks
