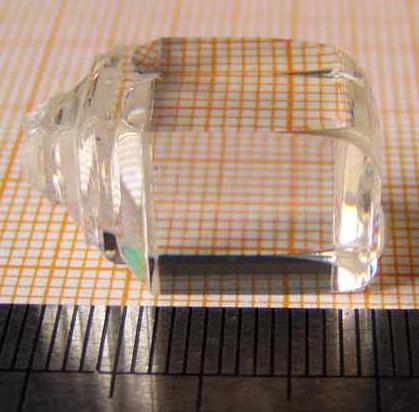

Nonlinear Crystal CLBO Crystal

Nonlinear Crystal CLBO Crystal, CLBO crystal, and lithium cesium borate crystal are suitable for Alexandrite and titanium sapphire lasers to produce double frequency and triple frequency lasers.

0.0 (0 Reviews)

~~$1,000.00~~ $0.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Nonlinear Crystal CLBO Crystal
CLBO crystal, also known as cesium lithium borate crystal (CsLiB6O10), has an ultra-high damage threshold (25gw / cm2 at 1064nm for 1 ns pulses). CLBO crystal and lithium cesium borate crystal have a wide light transmission range of 180nm-2750nm. CLBO crystal and lithium cesium borate crystal are very suitable for Nd: YAG laser to produce frequency doubling, frequency doubling, frequency quadrupling, and frequency quadrupling

CLBO crystal and lithium cesium borate crystal are suitable for Alexandrite and titanium sapphire lasers to produce double frequency and triple frequency lasers.

Features of CLBO Crystal:
• cut off wavelength up to 180nm
• maximum FOHG and FHG conversion efficiency of Nd: YAG laser
• relatively large effective NLO coefficient (about twice the KDP)
• wide acceptance angle and small departure angle
• 193nm VUV output can be obtained by phase matching
• high power generation unsaturated
• short growth cycle and large size.

Nonlinear Optical properties of CLBO and BBO Crystal

Wavelength(nm)	Crystal	Phase Matching Angle(°)	Deff (pm/V)	Angle Tolerance (mrad·cm)	Walk-off Angle (°)	Spectral Acceptance (nm·cm)	Temperature Acceptance (℃·cm)
532+532=266	CLBO	61.7	0.84	0.49	1.83	0.13	8.3
532+532=266	BBO	47.7	1.32	0.17	4.8	0.07	4.5
1064+266=213	CLBO	68.4	0.87	0.42	1.69	0.16	4.6
1064+266=213	BBO	51.1	1.26	0.11	5.34	0.08	3.1

WDQ OPTICS Provide:
• strict quality control;
• cutting angles and dimensions as required;
• AR coating, sealed housing and RE polishing services;
• fast delivery (only 10 working days for polishing and 15 working days for AR coating).
