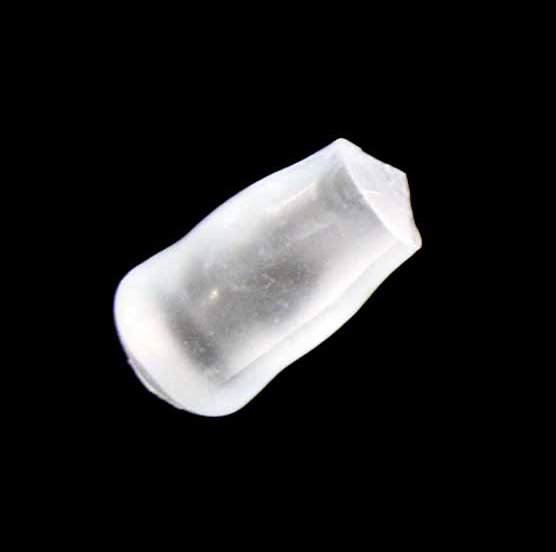

Nonlinear Crystal YCOB Crystals

Nonlinear Crystal Yttrium calcium oxy borate(YCa4O(BO3)3,YCOB crystal)crystal was good materials for nonlinear optical and high temperature piezoelectric applications.

0.0 (0 Reviews)

~~$1,000.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

YCOB Crystals
Yttrium calcium oxy borate(YCa4O(BO3)3,YCOB crystal)crystal was good materials for nonlinear optical and high temperature piezoelectric applications. WDQ OPTICS offers the YCOB crystals grown by CZ method, with maximum diameter upto 100mm, the custom specification crystals product is available upon your request.

Feature
Larger effective NLO susceptibilities
Large temperature acceptance
High laser induce damaging threshold
Very high electric resistivity
Less parametric luminescence (three orders less)

Specifications:

Thickness Tolerance	+/-0.05mm	Orientation Tolerance	<0.5 degree
Flatness	less than λ/8 @ 633nm	Transmitting Wavefront Distortion	less than λ/4 @ 633nm
Chamfer	≤0.2mmx45°	Chip	Chip
Surface Quality	better than 10/5 S/D (MIL-PRF-13830B)	Parallelism	≤30 arc seconds
Perpendicularity	≤5 arc minutes	Clear Aperture	>90%
