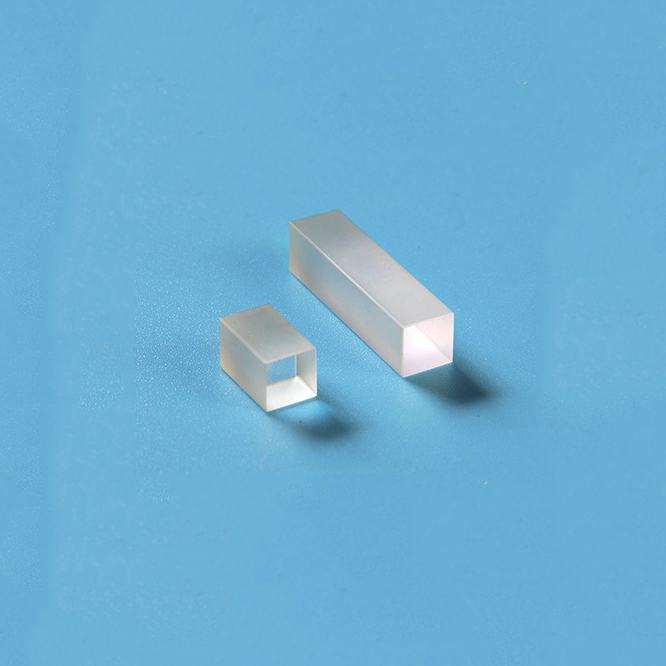

Nonlinear Crystal HGTR KTP Crystals

Nonlinear Crystal Gray track damage is a serious damage for KTP crystals, the conventional flux-grown KTP crystal is susceptible to the gray track damage, the hydrothermal-grown KTP has high damage threshold

0.0 (0 Reviews)

~~$1,000.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

HGTR KTP Crystals
Gray track damage is a serious damage for KTP crystals, the conventional flux-grown KTP crystal is susceptible to the gray track damage, the hydrothermal-grown KTP has high damage threshold and high ability to anti gray track. It is extremely suitable for laser system applications requiring high power, high efficiency and/or durability where regular flux-grown KTP crystals will suffer from gray track damage. Hangzhou Shalom EO offers the anti-gray track KTP crystals (HGTR-KTP) with excellent properties.

Advantages
Low absorption at 1064nm & 532nm
Higher gray track resistance than a normal KTP
Broad temperature bandwidth than normal KTP
High efficiency than a normal KTP

Specifications

Materials	HGTR-KTP crystals	Dimension Tolerance	(W±0.1mm)x(H±0.1mm)x(L+0.5/-0.1mm)
Size Range	Aperture:~10x10mm; Length: ~15mm	Clear Aperture	central 90% or the diameter
Scattering of Crystals	No visible scattering paths or centers when inspected by a 50mW green Laser	Flatness	less than λ/8 @ 633nm
Transmitting Wavefront Distortion	less than λ/8 @ 633nm	Chamfer	≤0.2mmx45°
Chip	≤0.1mm	Surface Quality	better than 10/5 S/D (MIL-PRF-13830B)
Parallelism	≤20 arc seconds	Perpendicularity	≤5 arc minutes
Angle Tolerance	≤0.25°	Coating	AR/AR@1064nm+532nm; R<0.2%@1064nm and R<0.5%@532nm
Quality Warranty Period	one year under proper use

Standard products

P/N	Dimension
GTR or HGTR-KTP-S-2205-C1/C1	2 x 2 x 5mm
GTR or HGTR-KTP-S-2207-C1/C1	2 x 2 x 7mm
GTR or HGTR-KTP-S-2210-C1/C1	2 x 2 x 10mm
GTR or HGTR-KTP-S-3305-C1/C1	3 x 3 x 5mm
GTR or HGTR-KTP-S-3307-C1/C1	3 x 3 x 7mm
GTR or HGTR-KTP-S-3310-C1/C1	3 x 3 x 10mm
GTR or HGTR-KTP-S-4405-C1/C1	4 x 4 x 5mm
GTR or HGTR-KTP-S-4407-C1/C1	4 x 4 x 7mm
GTR or HGTR-KTP-S-4410-C1/C1	4 x 4 x 10mm
GTR or HGTR-KTP-S-5505-C1/C1	5 x 5 x 5mm
GTR or HGTR-KTP-S-5507-C1/C1	5 x 5 x 7mm
GTR or HGTR-KTP-S-5510-C1/C1	5 x 5 x 10mm
GTR or HGTR-KTP-S-6605-C1/C1	6 x 6 x 5mm
GTR or HGTR-KTP-S-6607-C1/C1	6 x 6 x 7mm
GTR or HGTR-KTP-S-6610-C1/C1	6 x 6 x 10mm
GTR or HGTR-KTP-S-2205-C2/C1	2 x 2 x 5mm
