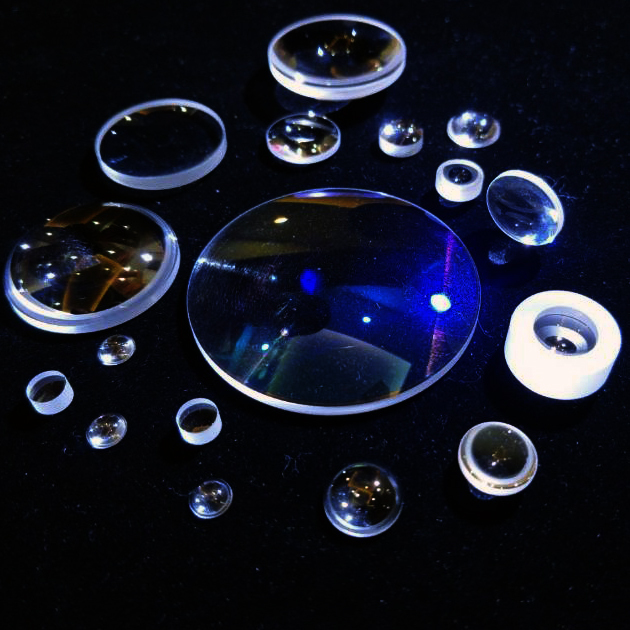

Infrared Lenses Sapphire Lens

Infrared Lenses Sapphire Lens has a wide spectrum of light transmittance and high optical clarity, especially in demanding applications, such as laser systems or working conditions in harsh environments.

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Infrared Lenses Sapphire Lens
Sapphire has a wide spectrum of light transmittance and high optical clarity, especially in demanding applications, such as laser systems or working conditions in harsh environments. Sapphire has excellent hardness, high thermal conductivity, and chemical acid-base resistance. Its physical properties are difficult to process, and it also needs a unique polishing process.

At WDQ optics, our technicians can provide the excellent accuracy required by customers. Whether the finished product is used through infrared wavelength or in the ultraviolet range, our sapphire products are suitable; The following applications:
The endoscope and; Medical optical applications
Infrared (IR) sapphire optics for laser systems
Sapphire optics for LED; Lighting application
Sapphire lens, reflector and; Optical fiber application support
Sapphire light tube; Optical waveguide for infrared transmission
Our precision sapphire lenses are widely used in imaging optics, chemical and corrosion-resistant front surface optics, and focusing lenses.

WDQ OPTICS can design and produce various specifications of optical elements according to customer requirements. The company adopts high-low polishing combined processing technology, which can not only meet the product requirements but also take into account the requirements at the same time; The products produced by the company are used in digital camera lenses, microscopes, level gauge, vehicle lens, scanning lenses, projector, gun aiming, endoscope, laser rangefinder, and other high optical instruments.

Sapphire Lenses	COMMERCIAL GRADE	FACTORY STANDARD	PRECISION GRADE
Diameter Tolerance(mm)	0	0	0
Center Thickness(mm)	±0.10	±0.05	±0.03
Radius (%)	±2%	±1.5%	±1%
Focal Length Tolerance (%)	<5%	<5%	<3%
Cosmetic(MIL-C-13830A)	100-80	60-40	40-20
Figure Tolerance in 位(Pow/irreg)	5-2	2-1	1-1/2
Centration (Arc min)	5'	5'	3'
Dia. To Thick Ratio	9~50:1
Coating (T% avg)	96% @ 3-5um/7-14um. 95% @ 4-12um
Materials	CZ Optical Grade Sapphire
