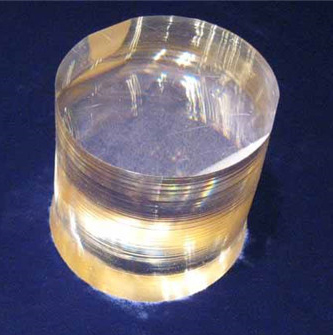

Nonlinear Crystal LiNbO3 Crystal and MgO:LiNbO3 Crystals

Nonlinear Crystal LiNbO3 Crystal is widely used as frequency doublers for wavelength > 1µm and optical parametric oscillators (OPOs) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices.

0.0 (0 Reviews)

~~$1,000.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

LiNbO3 Crystal and MgO:LiNbO3 Crystals
LiNbO3 Crystal is widely used as frequency doublers for wavelength > 1µm and optical parametric oscillators (OPOs) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices. Compared with pure LiNbO3, MgO:LN has higher optical damage threshold.Due to its large Electro-Optic (E-O) and Acousto-Optic (A-O) coefficients, LiNbO3 crystal is the most commonly used material for Pockel Cells, Q-switches and phase modulators, waveguide substrate, and surface acoustic wave (SAW) wafers, etc. Hangzhou Shalom EO provides the MgO(0.6~1.0mol%):LiNbO3 and MgO(5mol%):LiNbO3 crystals, the custom crystals of blanks, polished and coated and electroded is available upon your request.

Lithium Niobate (LiNbO3) is widely used in fiber communication devices as Birefringent crystal. It has good mechanical and physical properties and is ideal for optical polarizing components due to its wide transparency range and low cost. It is an excellent material in fiber communication applications such as isolators, circulators, beam displacers, and other polarizing optics.

Feature
Broad transparent range of 0.3 to 5.2 micro
High nonlinear coefficients
Non-doping LiNbO3 and MgO (0.6% to 5.0%) mol doping LiNbO3 available
High damage threshold for MgO:LiNbO3 crystals
Used as SHG, OPO , DFM and TPO (Tera-hertz Wave Parametric Oscillators) applications

Specifications

Crystal Materials	MgO(0.6-1.0mol% or 5mol%):LiNbO3 crystals	Size	Customized
Size Tolerance	+/-0.1mm	Length Tolerance	+/-0.2mm
Surface Quality	20/10 S/D	Parallelism	<20 arc seconds
Flatness	< Lambda/10 @633nm	Perpendicularity	<5 arc minutes
Perpendicularity	<5 arc minutes	Chamfer	0.2mmx45°
Side Surface	Fine ground	Orientation Tolerance	< 10 arc minutes
Wavefront Distortion
