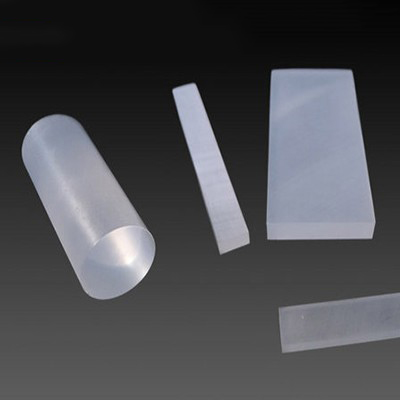

| Materials | LiIO3 crystals, optical grade | Dimension Tolerance | +/-0.1mm |
| Surface Quality | 10/5 S/D | Parallelism | < 10 arc seconds |
| Flatness | < Lambda/8@633nm | Perpendicularity | < 5 arc minutes |
| Transmitting Wavefront Distortion | < Lambda/8@633nm | Aperture | >90% |
| Chamfer | 0.2mmx45degree | Chips | <0.1mm |
| Coating | AR, BBAR or P-coating | ||
Physical Properties:
| Transmission Range | 0.5 to 5.0μm | Crystal Structure | hexagonal |
| Point Group | 6 | Density | 4.487 g/cm3 |
| Mohs Hardness | 3.5-4.0 | Absorption at 1064nm, cm-1 | <0.05 |
| Refractive Indices at 1064nm | no=1.8571, ne=1.7165 | Refractive Indices at 800nm | no=1.8676, ne=1.7245 |
| Refractive Indices at 532nm | no=1.8982, ne=1.7480 | Phase Matching Range for Type1 SHG(nm) | 570-4000 |
| Angular, mradxcm | 0.77 | Spectral, cm-1 xcm | 12.74 |
| Acceptances for Type 1 SHG at 1064nm, mrad | |||
